Wall-mount chargers

V-8 – wall-mount charger for on-camera Li-ion batteries
(mount type: V-mount).
G-8 – wall-mount charger for on-camera Li-ion batteries
(mount type: Gold-mount).

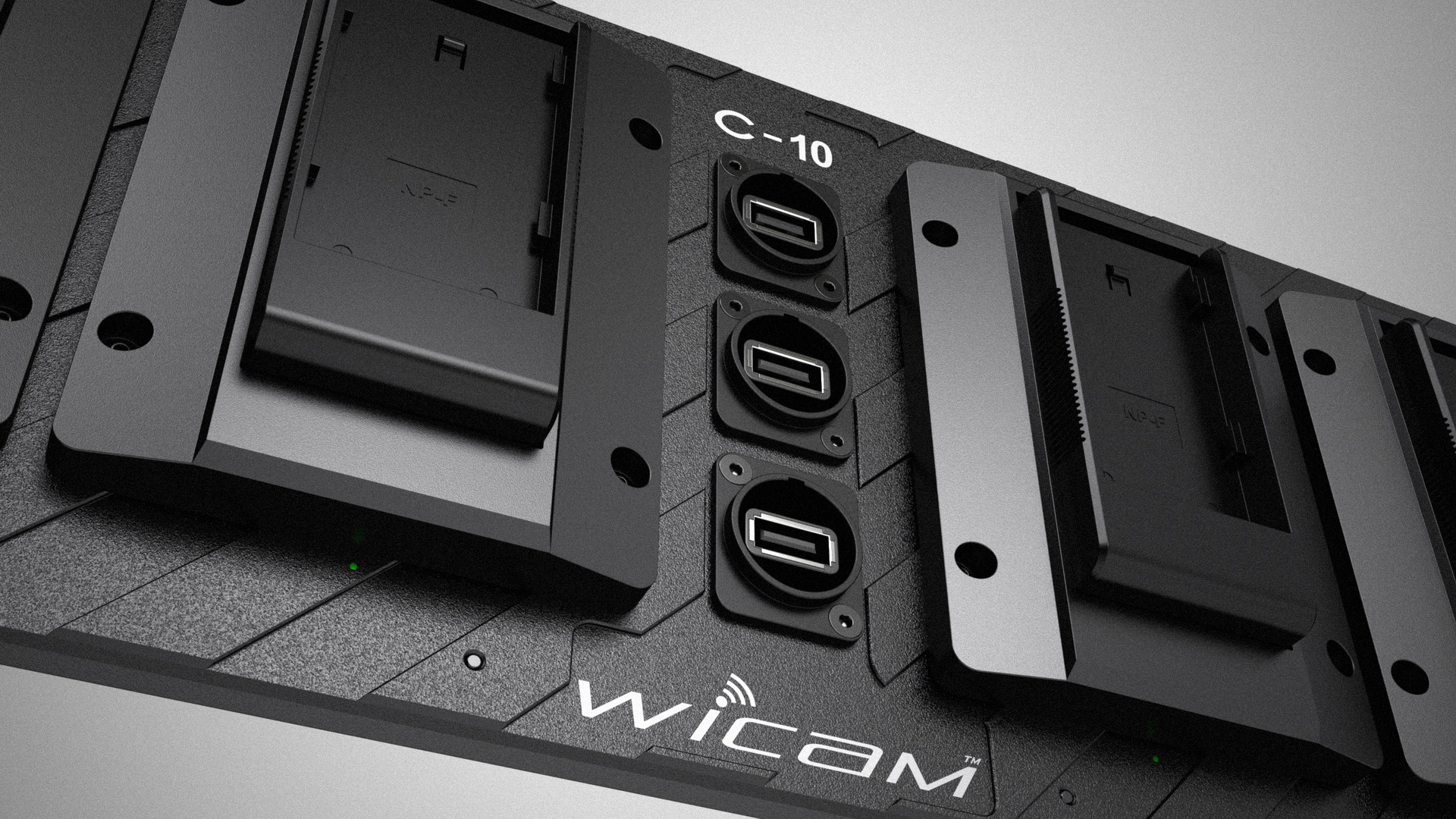

C-10 – wall-mount charger for on-camera Li-ion batteries
(mount type: NP-F / LP-E6 / NP-QM91D).

The devices are capable of simultaneously charging up to 8 batteries (V-8 / G-8) and up to 10 batteries (C-10).
In addition for charging and power there are 3x USB connectors with an output voltage of 5 volts on board.

Up to 5x V-8 / G-8 chargers and up to 10x C-10 chargers can be powered from one outlet at the same time.
Chargers can be interconnected to each other by short wired adapters.

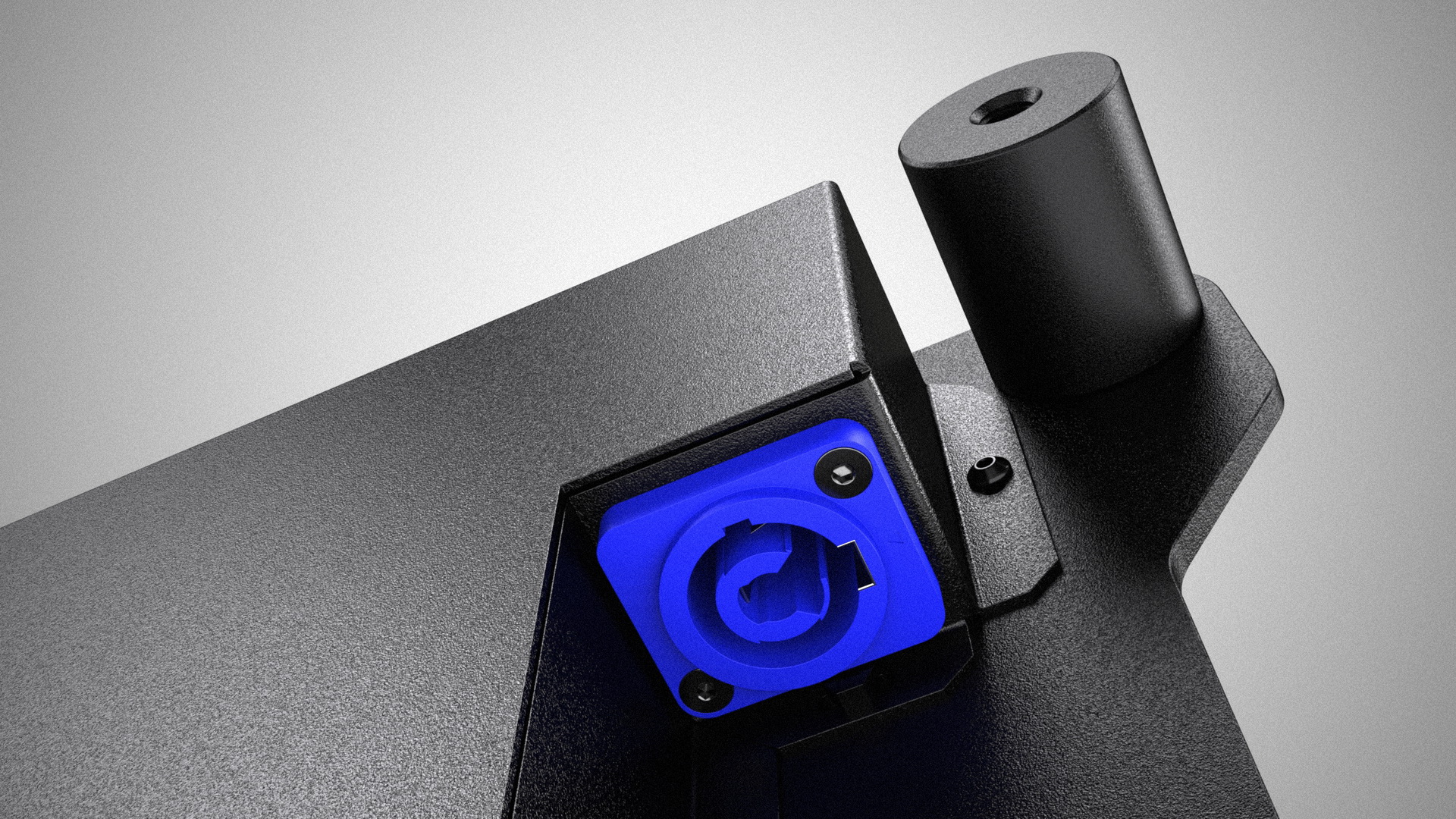

The power input connectors are located on the sides of the housing, while,
both the network cable and wired adapter can be connected from either side.

Thanks to the body, completely made of metal,
the system has passive cooling and has a high level of fire safety.

The chargers are controlled by microprocessors and are completely autonomous.
The algorithm of operation of chargers optimally interacts with batteries,
preserving their service life for the longest possible use.

Noiseless operation, fire safety, compact dimensions, wall-mounted design - make V-8, G-8 and C-10 practical and reliable tools for your rental.



V-8 parameters

Body material
AL 7075 / Zinc plated steel
Battery type
Li-Ion
Mount type
V-mount
Input voltage
100 - 240 V
Output voltage
16.8 V (V-mount), 5 V (USB)
Max power consumption
450 W
Max charging current
3 A (V-mount), 2 A (USB)
Power cable AWG
13
Working temperature range
-20 +50 ºC
Coling type
Passive

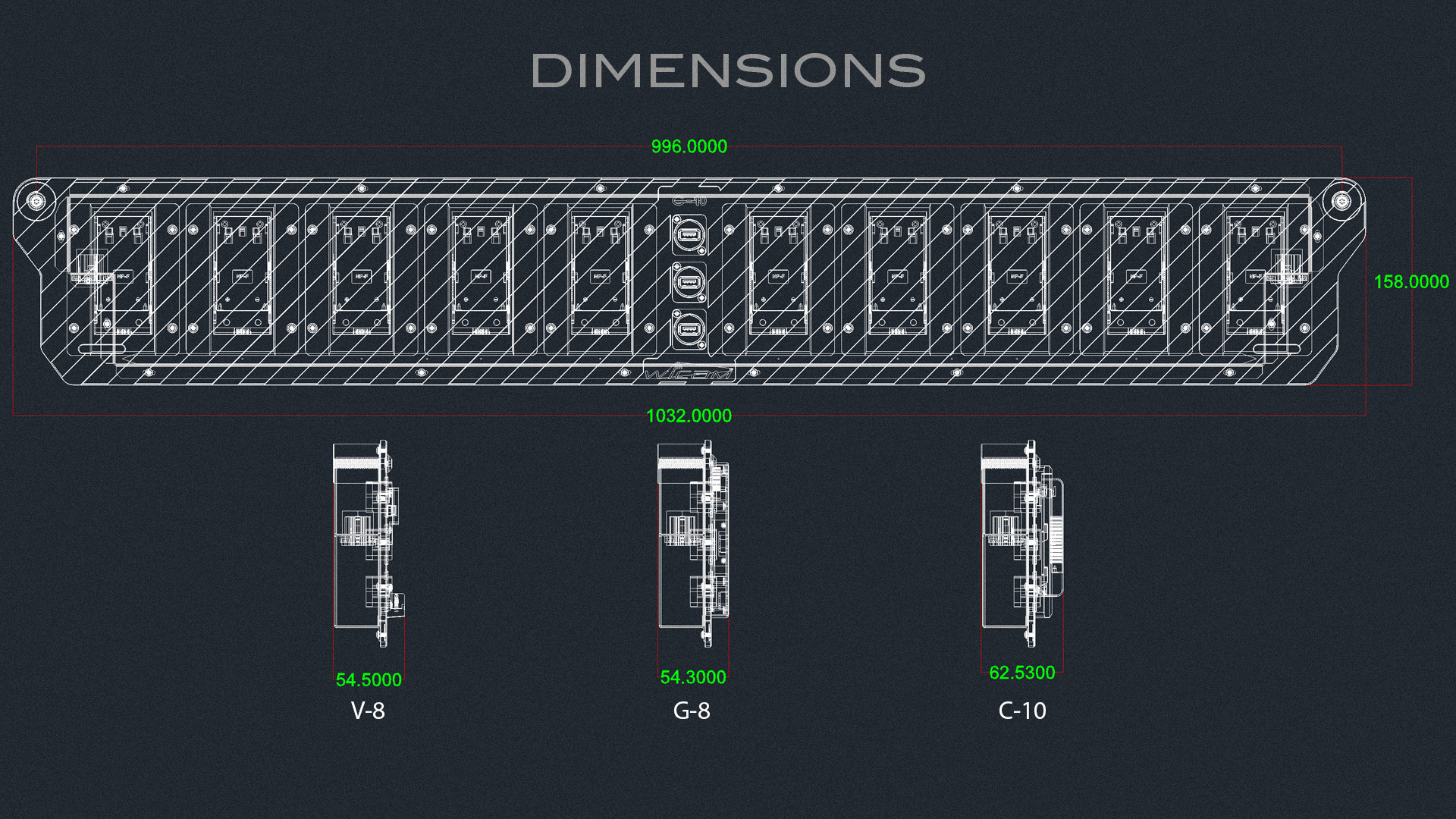

Dimensions
1032 x 158 x 54.5 mm
Weight
5.1 kg



G-8 parameters

Body material
AL 7075 / Zinc plated steel
Body material
AL 7075 / Zinc plated steel
Battery type
Li-Ion
Mount type
Gold-mount
Input voltage
100 - 240 V
Output voltage
16.8 V (Gold-mount), 5 V (USB)
Max power consumption
450 W
Max charging current
3 A (Gold-mount), 2 A (USB)
Power cable AWG
13
Working temperature range
-20 +50 ºC
Cooling type
Passive
Dimensions
1032 x 158 x 54.3 mm
Weight
5.1 kg



C-10 parameters

Body material
AL 7075 / Zinc plated steel
Battery type
Li-Ion
Mount type
NP-F / LP-E6 / NP-QM91D
Input voltage
100 - 240 V
Output voltage
8.4 V (NP-F / LP-E6 / NP-QM91D), 5 V (USB)
Max power consumption
200 W
Max charging current
2 A (NP-F / LP-E6 / NP-QM91D), 2 A (USB)
Power cable AWG
13
Working temperature range
-20 +50 ºС
Cooling type
Passive
Dimensions
1032 x 158 x 62.5 mm
Weight
5.1 kg



Price:
1pc: 1540 Euro
2-4pcs: 1465 Euro
5-9pcs: 1370 Euro
from 10pcs: 1250 Euro
