Power Rod

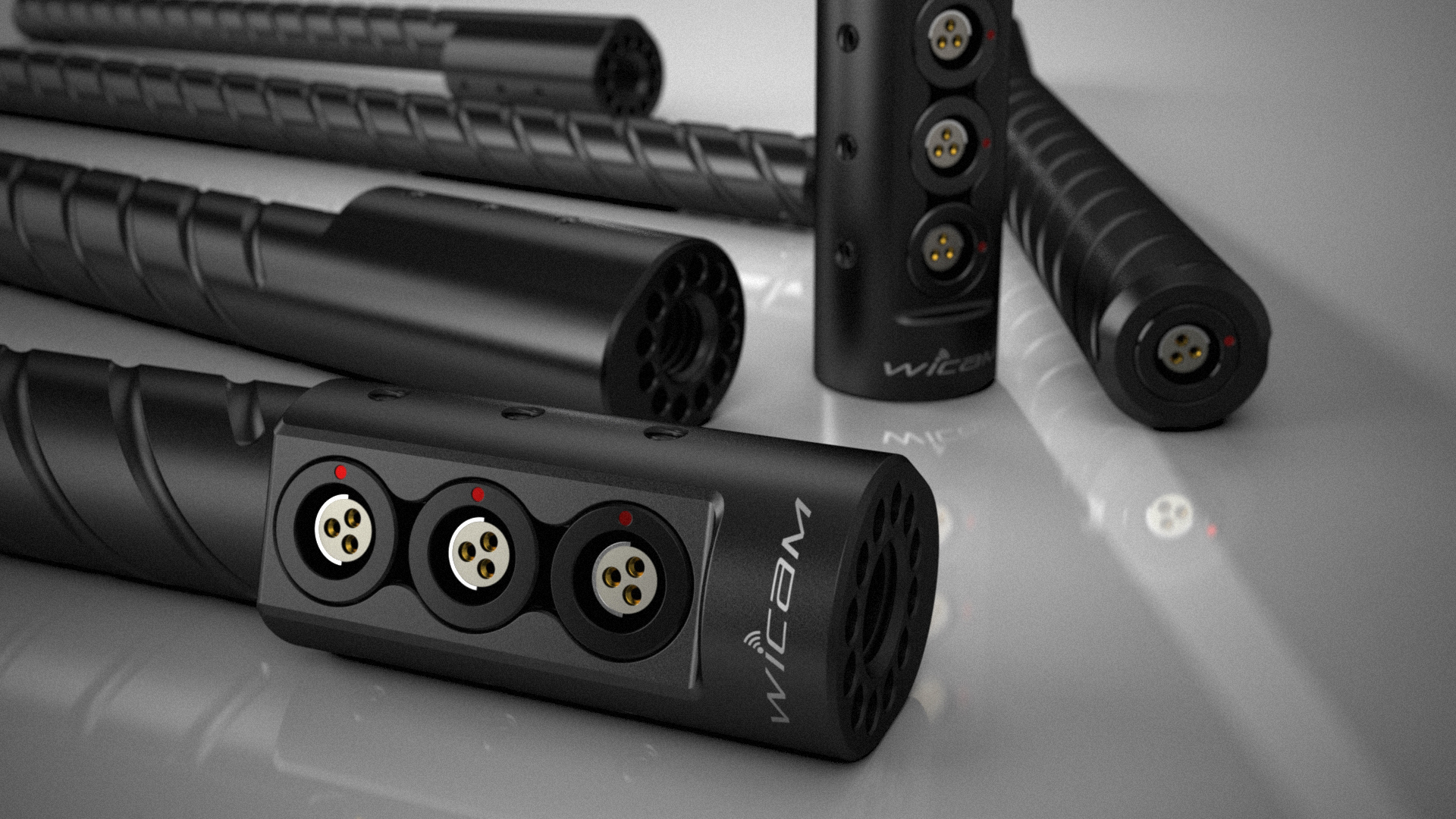

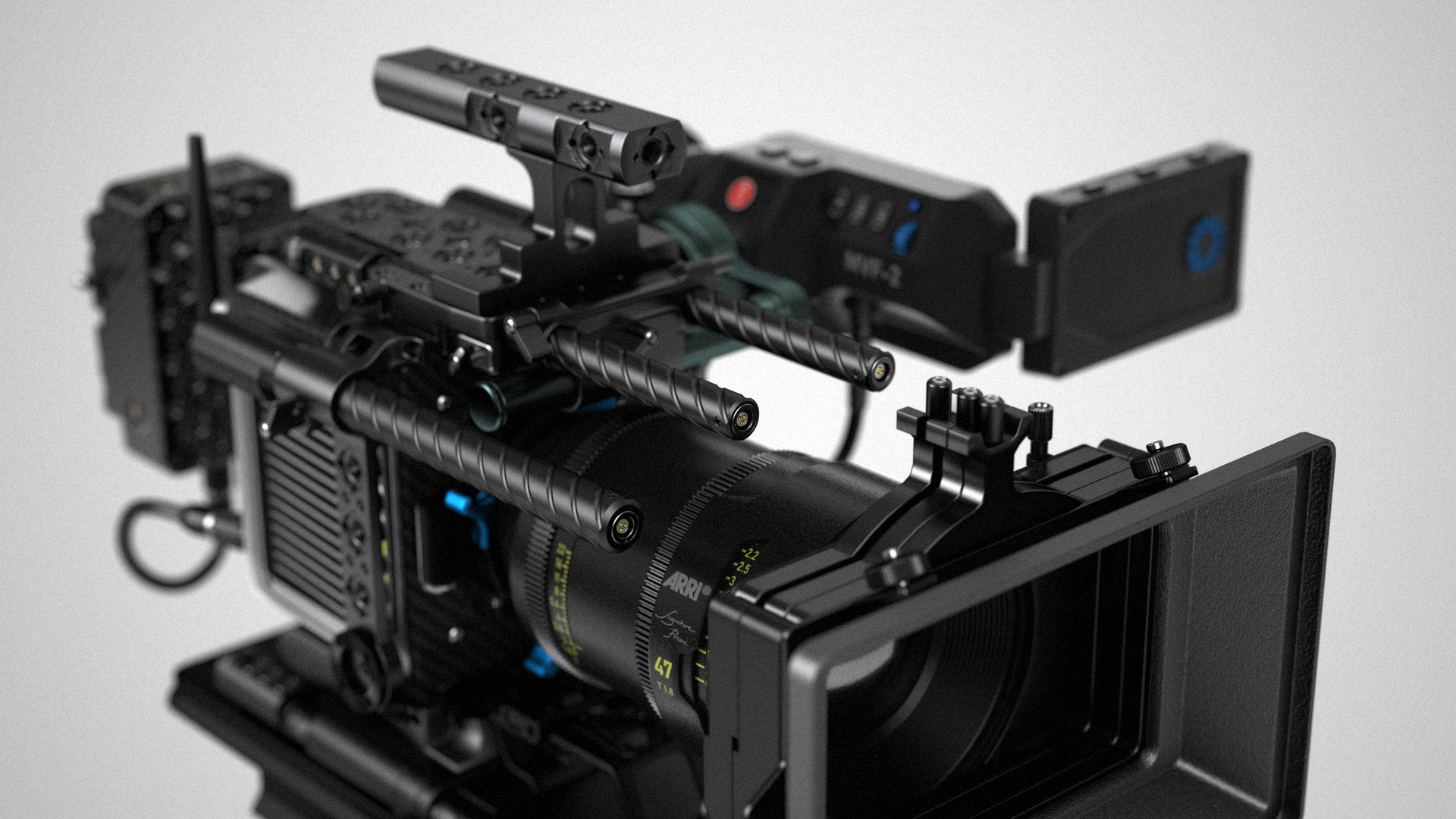

Power Rod – aluminum adapter for camera rigs and accessory mounting equipped
with built-in power distributor with pass-through RS signal -
designed to increase and diversify power options of your setup.

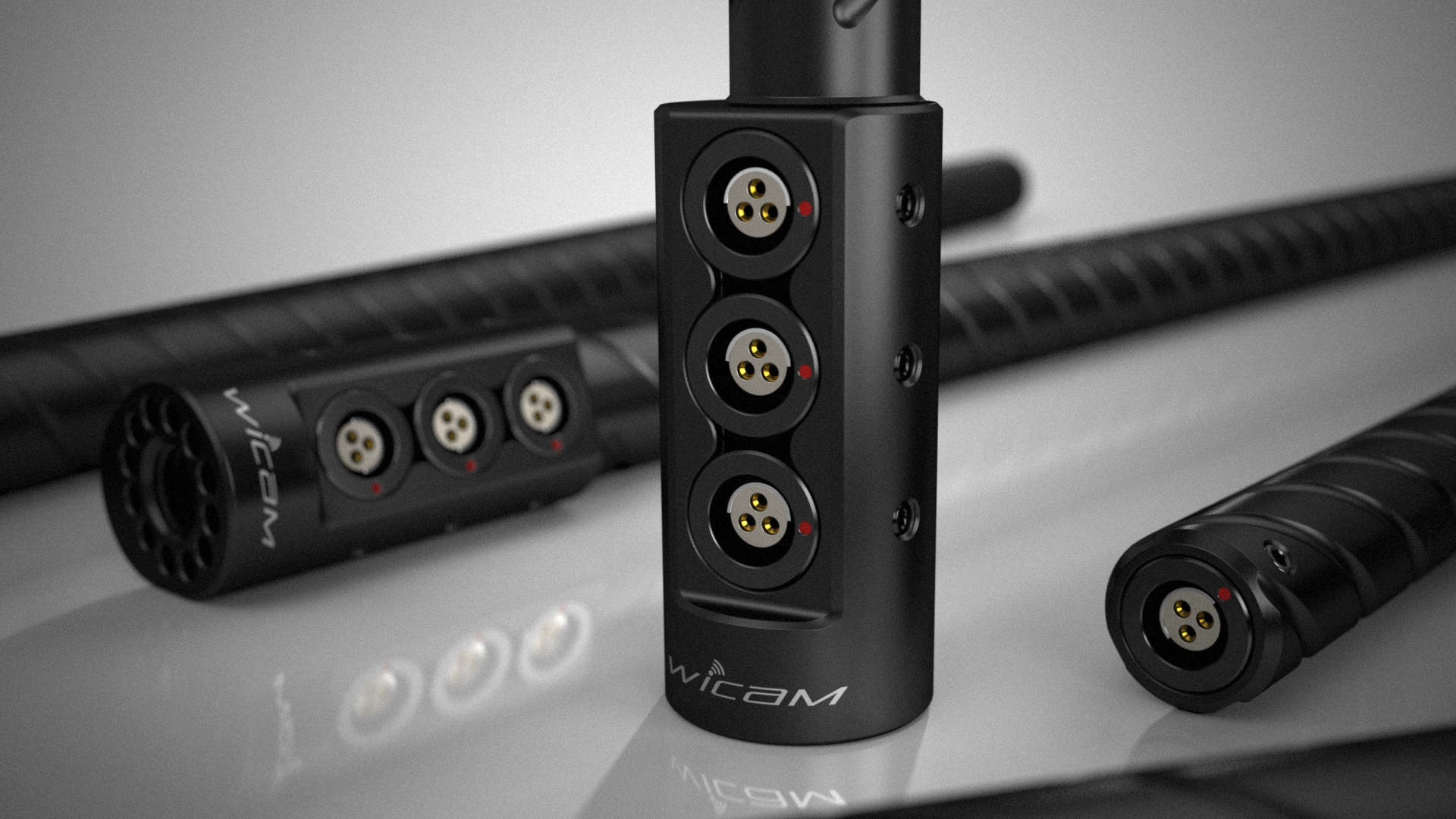

Has 4 end-to-end (pass-through) sockets for connection.

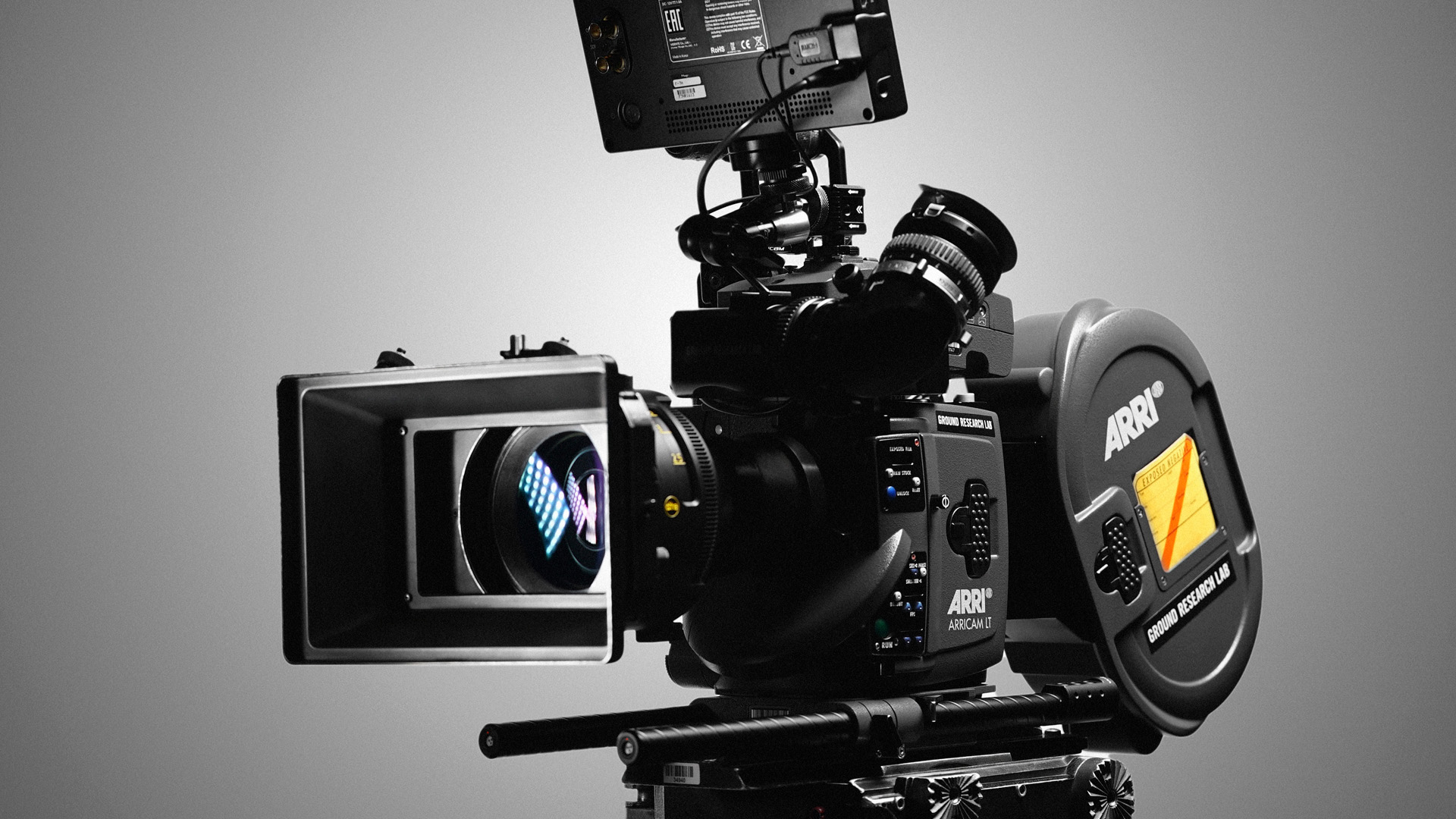

As well as a power signal, the splitter also passes a "Rec-Stop" signal through itself for remote control of Arri cameras.
There is a standard 3/8 UNC 16 thread with "Arri location points" on board.

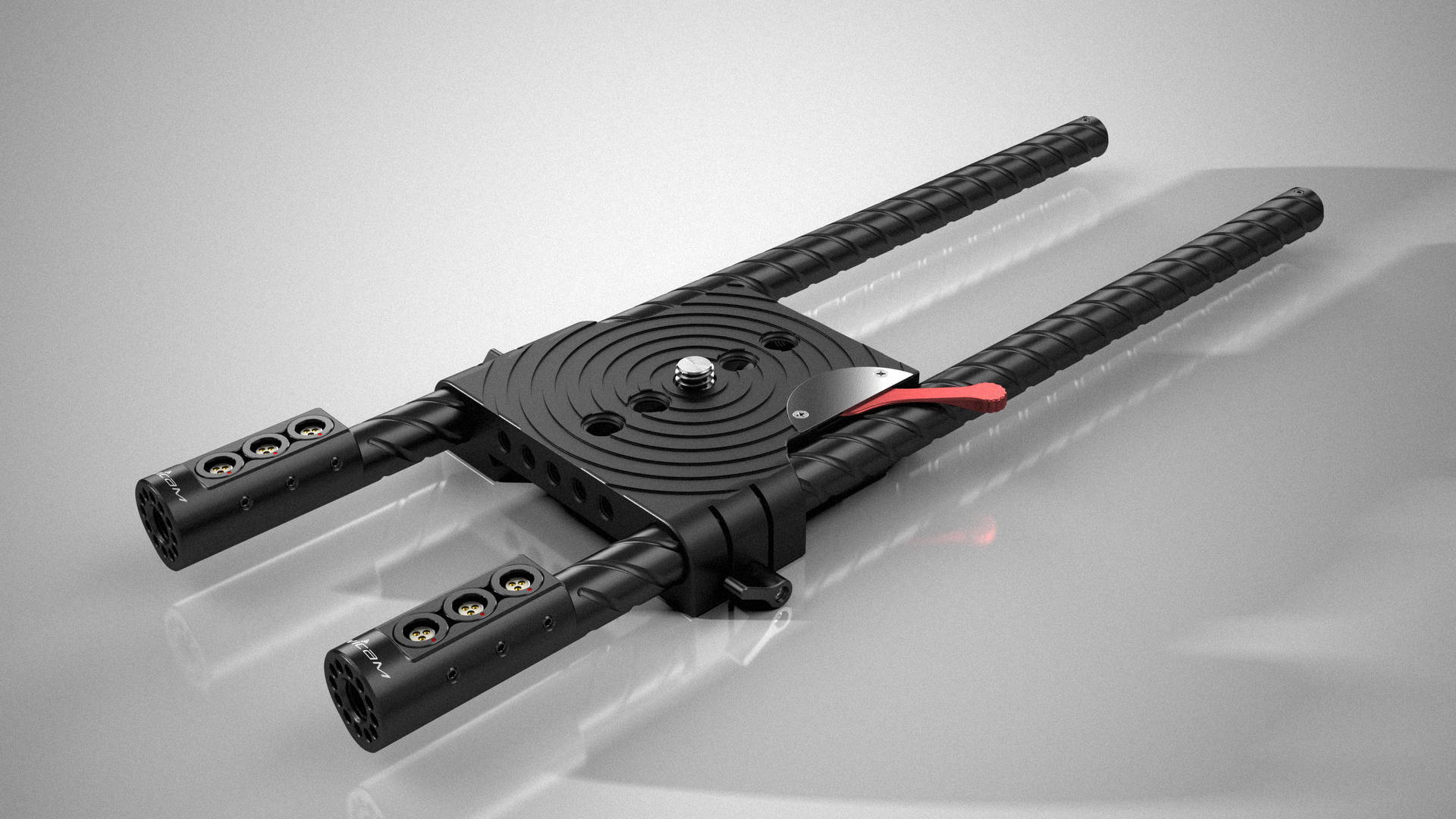

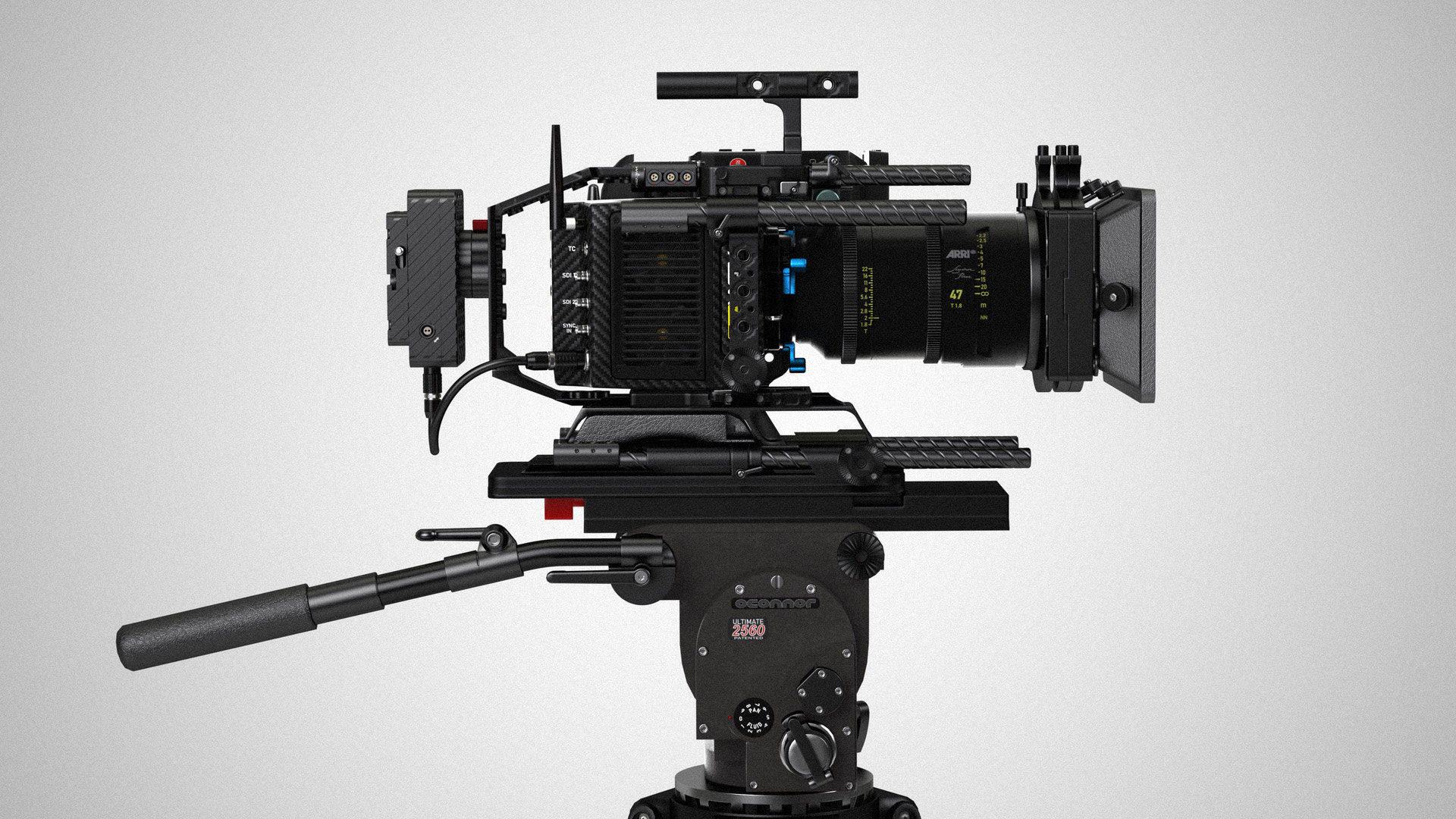

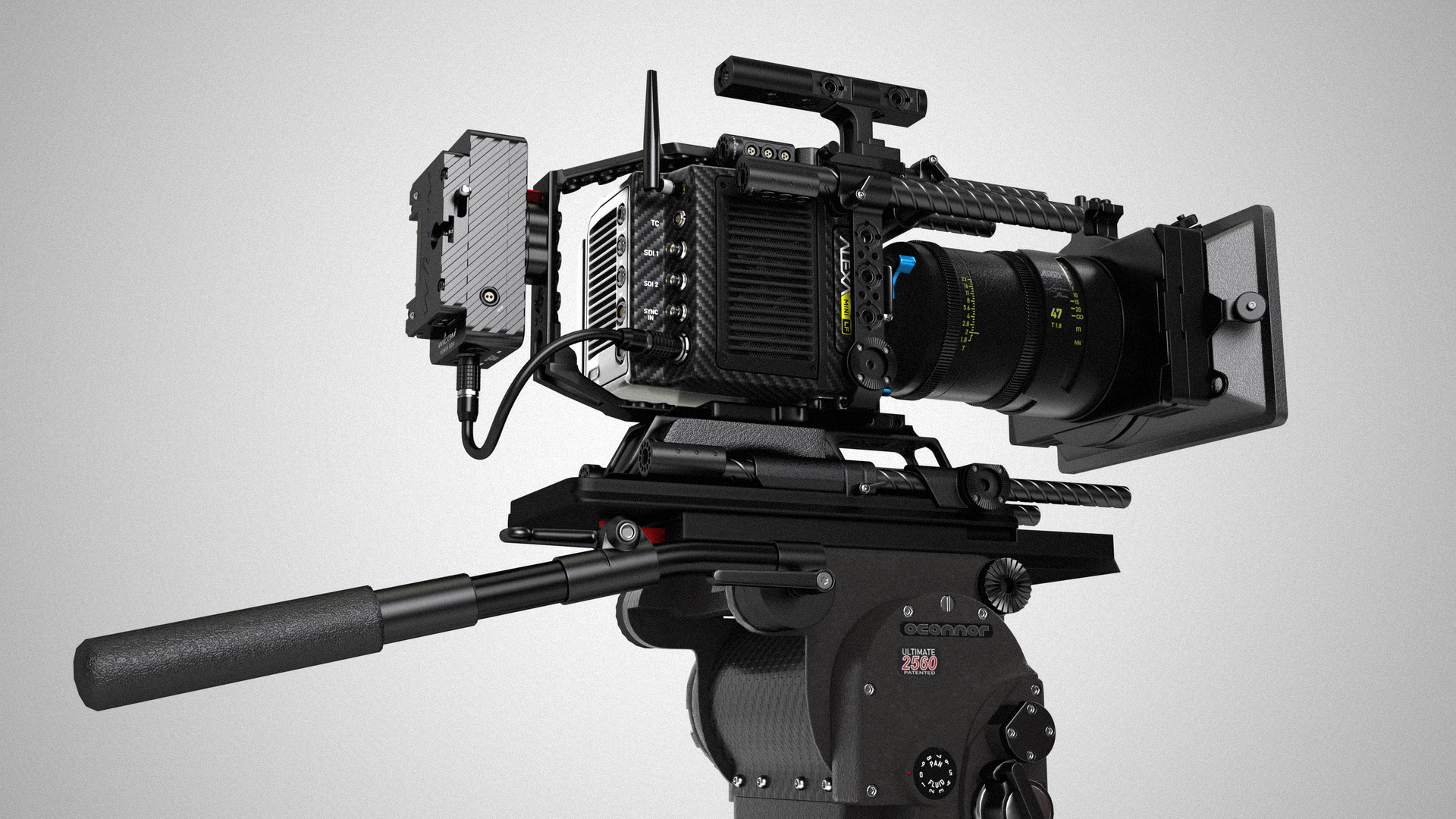

Can be used as a rig adapter for mounting of on-camera accessories and a power distributor at the same time.

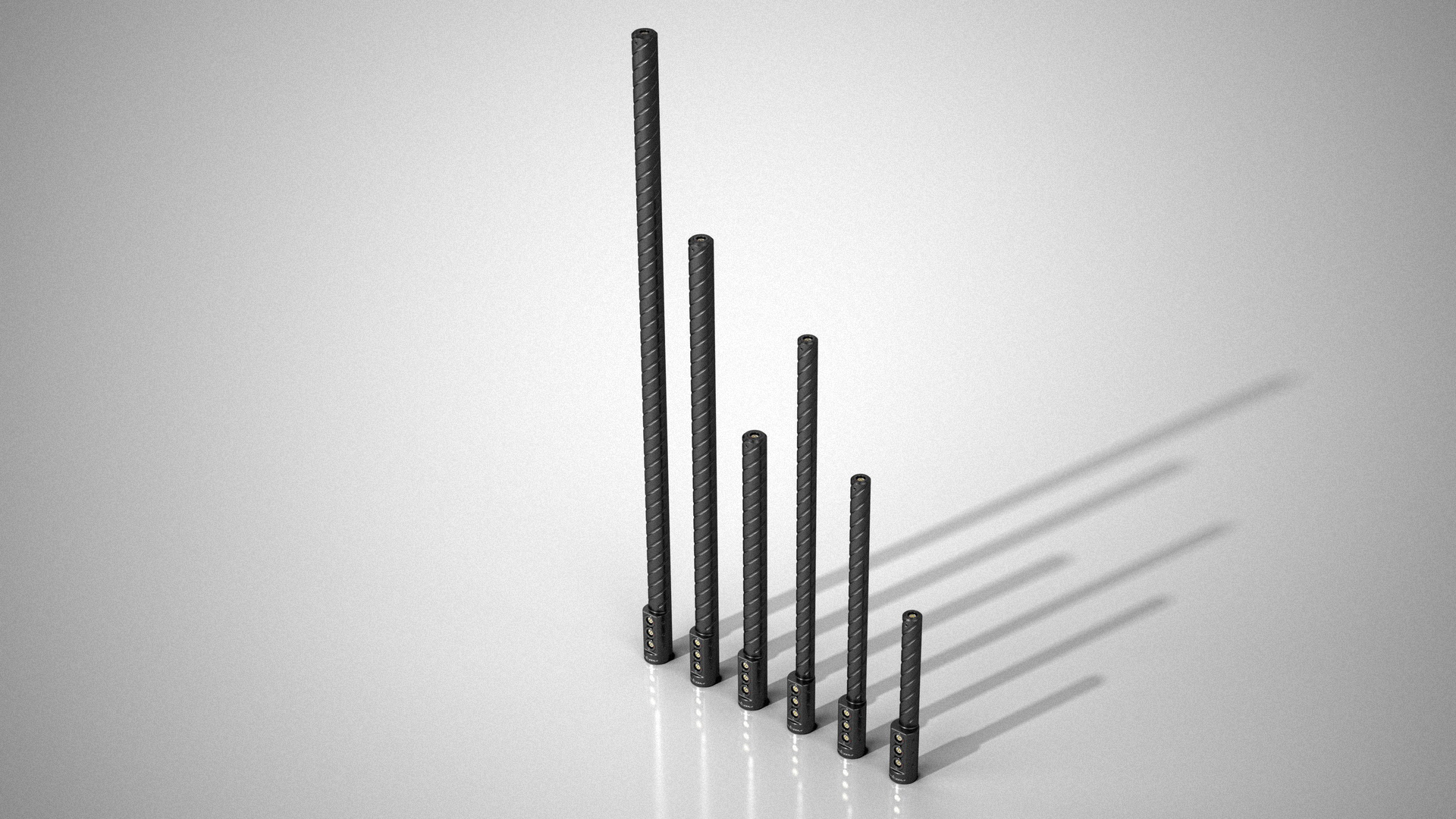

Available in 15 mm diameter with 100/200/300 mm lengths, as well as in 19 mm diameter with 200/350/500 mm lengths.



Parameters

Body material
AL 7075
Power sockets
Fischer3pin 0F x4
Input voltage
12 - 36 V
Output voltage
Pass-through x4
Dimensions
Diameter 15 mm, length 100/200/300 mm (+48 mm distributor)
Diameter 19 mm, length 200/350/500 mm (+48 mm distributor)
Weight
15-100 mm: 77 g
15-200 mm: 115 g
15-300 mm: 143 g
19-200 mm: 175 g
19-350 mm: 260 g
19-500 mm: 347 g



Price:
Rod 15-100 mm:
1pc: 335 Euro
2-4pcs: 318 Euro
5-9pcs: 294 Euro
from 10pcs: 265 Euro



Rod 15-200 mm:
1pc: 350 Euro
2-4pcs: 333 Euro
5-9pcs: 308 Euro
from 10pcs: 277 Euro



Rod 15-300 mm:
1pc: 365 Euro
2-4pcs: 345 Euro
5-9pcs: 320 Euro
from 10pcs: 288 Euro



Rod 19-200 mm:
1pc: 355 Euro
2-4pcs: 337 Euro
5-9pcs: 312 Euro
from 10pcs: 280 Euro



Rod 19-350 mm:
1pc: 375 Euro
2-4pcs: 356 Euro
5-9pcs: 330 Euro
from 10pcs: 297 Euro



Rod 19-500 mm:
1pc: 395 Euro
2-4pcs: 375 Euro
5-9pcs: 347 Euro
from 10pcs: 312 Euro
