CYPRESS HD

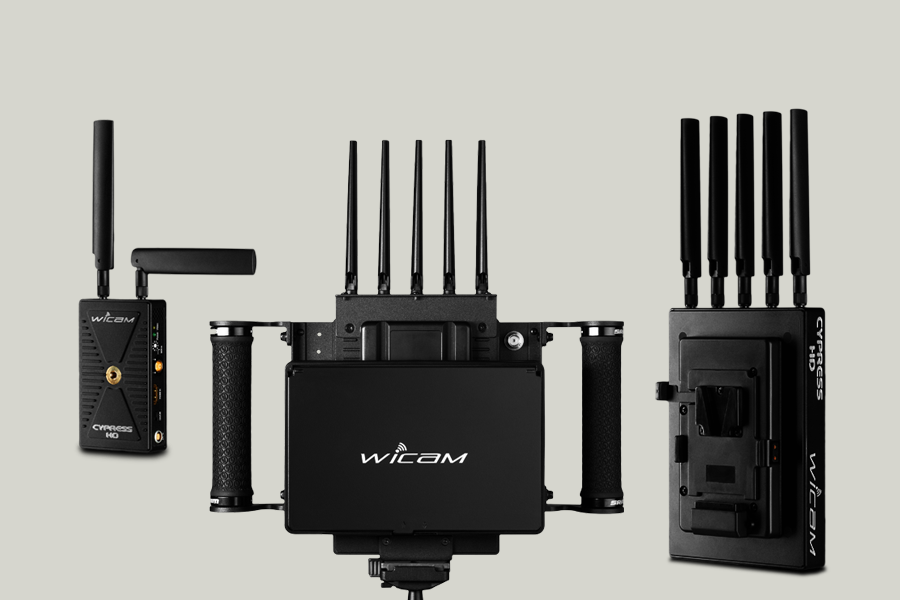

Cypress HD – is a wireless portable video control system,
which is capable of transmitting uncompressed Full-HD video signal.

The main features of the system are the following:
without delay and compression,
metadata transfer from camera,
SDI/HDMI inputs/outputs,
transmission distance with standard 2dBi omni antennas is up to 500 meters (LOS).

If Shield directional antenna is used,
the distance range can increase up to 1,200 meters (LOS).

The weight of the transmitter is just 380 grams.
SDI and HDMI inputs make it possible to use Cypress HD with any modern camera.

The support of Multicast allows users to connect up to 10 receivers
or radio monitors simultaneously to one transmitter.

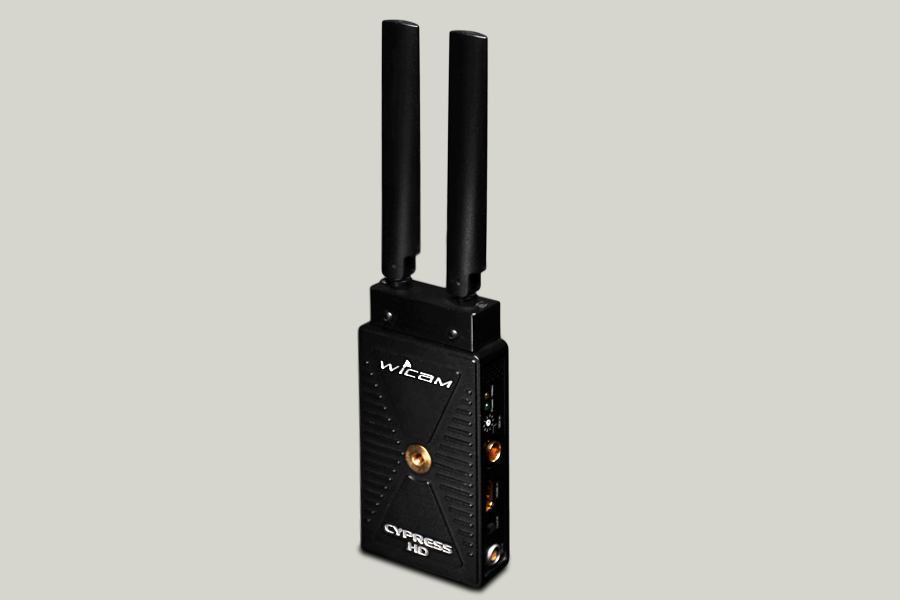

Transmitter parameters

Video inputs
HD/3G-SDI - SMPTE 259/274/292/296/372/424/425
HDMI 1.3
Video formats
525i, 625i, 720p 50/59.94/60
1080i 50/59.94/60
1080p 23.98/24/25/29.9/30/50/59.94/60
Audio input
4 SDI embedded channels
24 bit, 48 Khz
Tx power
67 mW, 18 dBm
Antenna connectors
RP-SMA
Battery plate
Sony NP-F
Power connector
4 pin LEMO, DC 12 - 16V
Consumption current
≈ 400 mA
Particular qualities
Noiseless operation, passive cooling
Dimensions
120x70x25 mm
Weight
380 g

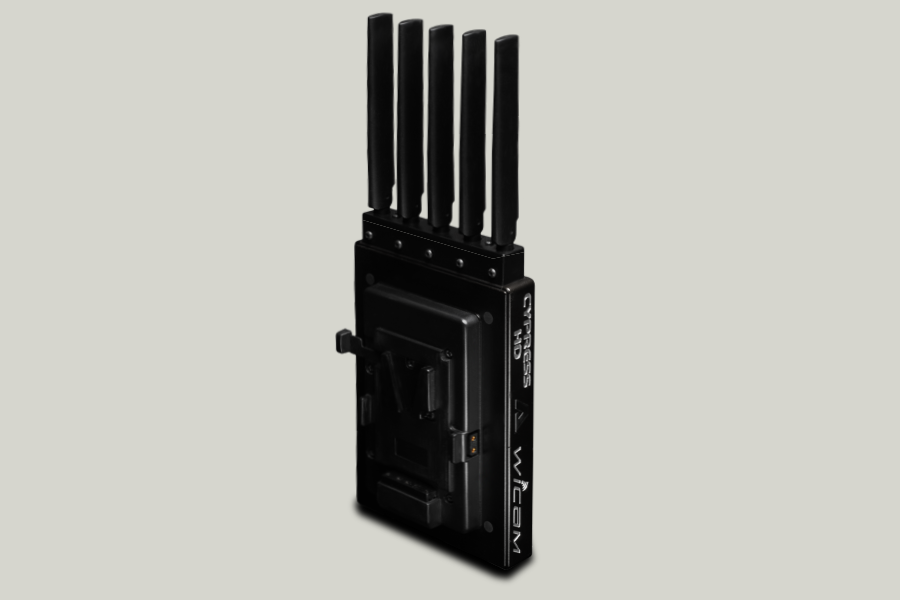

Receiver parameters

Video outputs
HD/3G-SDI - SMPTE 259/274/292/296/372/424/425
HDMI 1.3
Audio output
4 SDI embedded channels
24 bit, 48 Khz
Antenna connectors
RP-SMA
Battery plate
V-lock
Power connector
4 pin LEMO, DC 12-16V
Consumption current
≈ 500 mA
Particular qualities
Noiseless operation, passive cooling, additional V-Lock male plate
Dimensions
160x110x25 mm
Weight
540 g

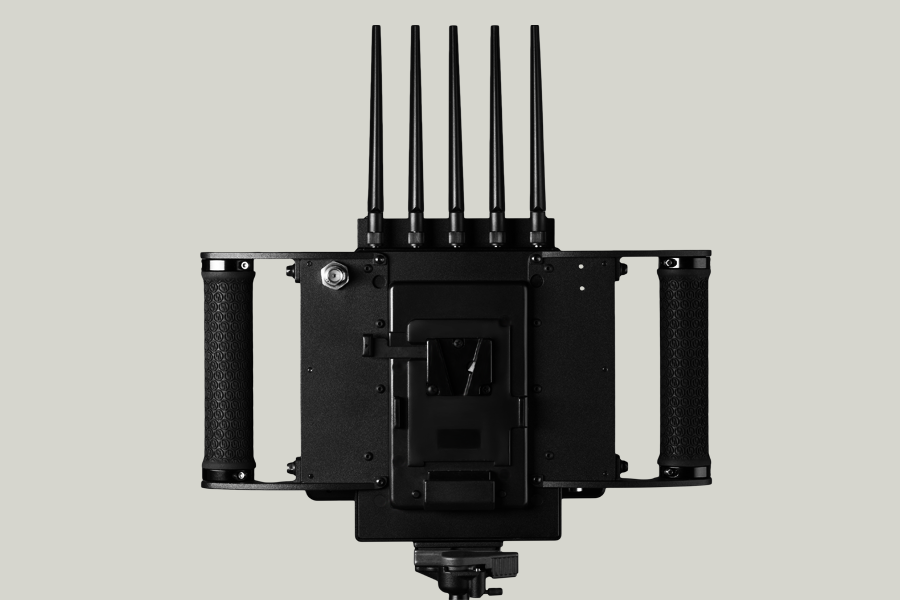

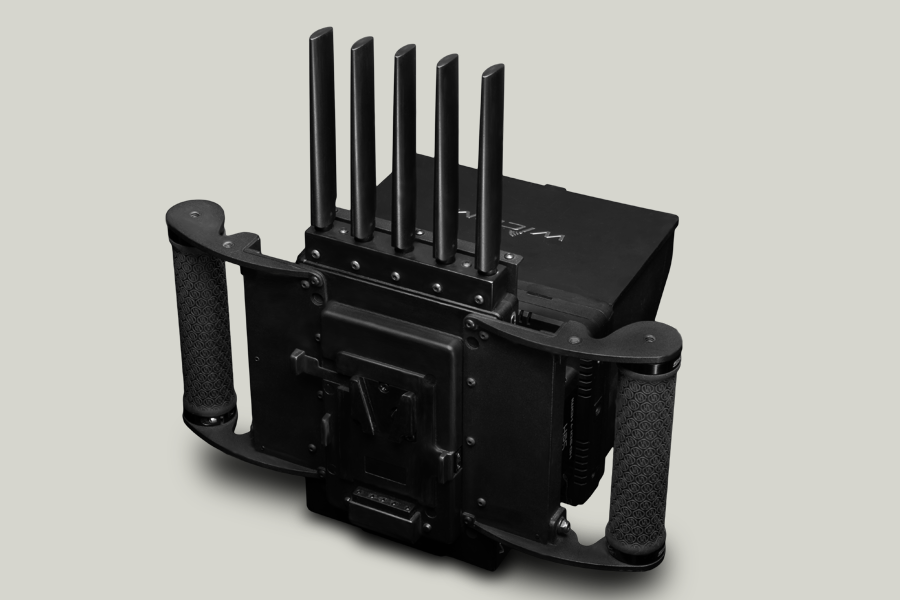

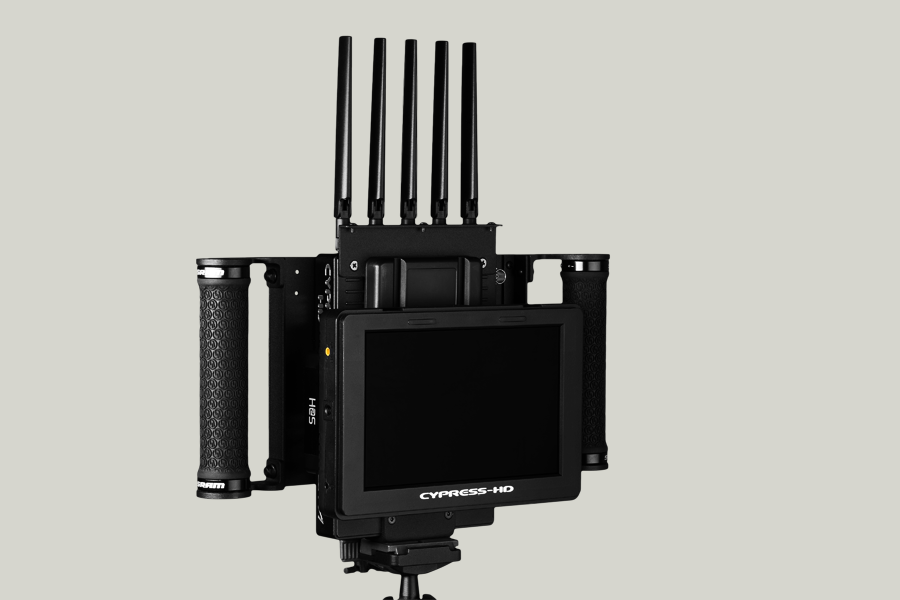

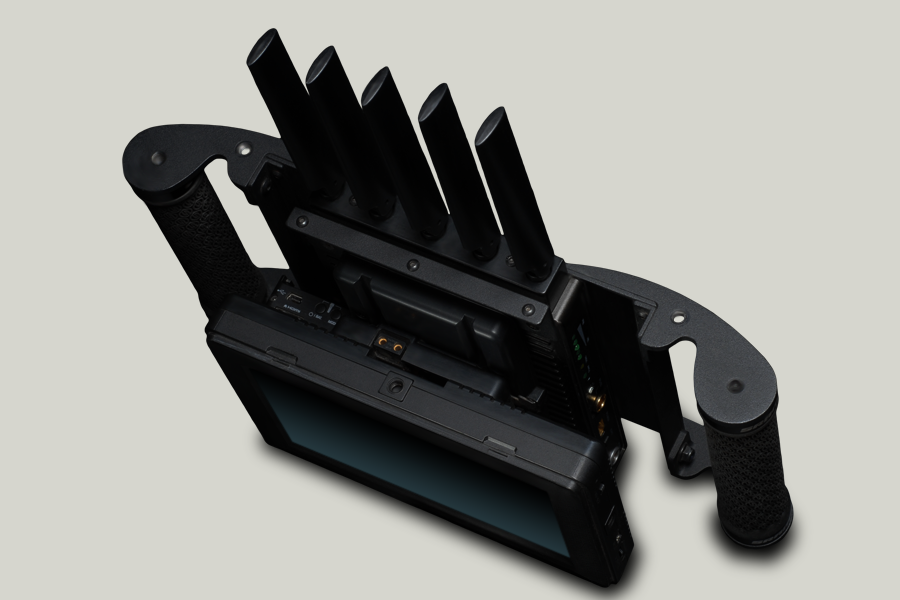

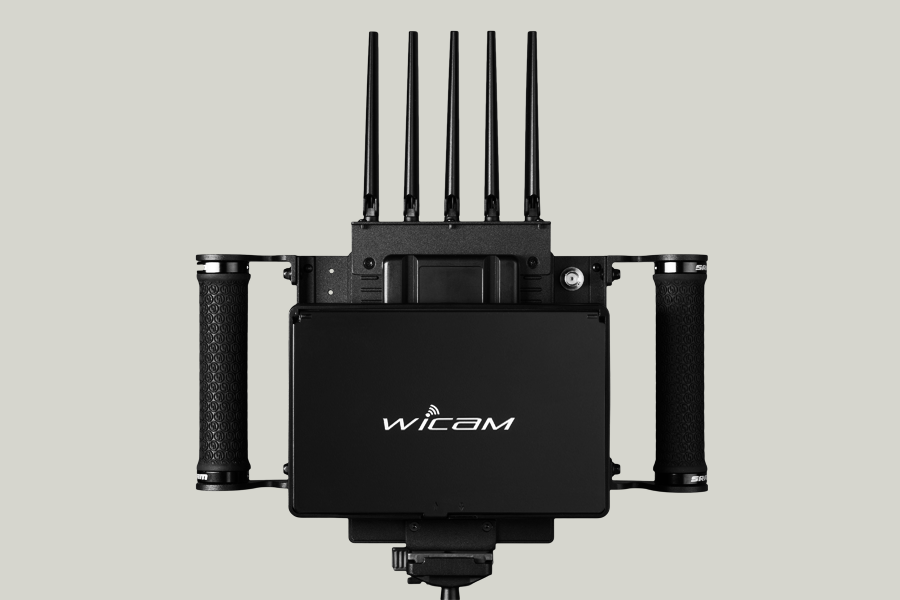

Handheld wireless monitor parameters

Display resolution
1920 x 1080 px
Display diagonal
7 inches
Video outputs
HD/3G-SDI - SMPTE 259/274/292/296/372/424/425
HDMI 1.3
Audio outputs
Analog stereo mini-Jack 3.5 mm
4 SDI embedded channels
Antenna connectors
RP-SMA
Battery plate
V-lock
Power connector
4 pin LEMO, DC 12-16V
Consumption current
≈ 1000 mA
Particular qualities
Noiseless operation, passive cooling
Dimensions
160x110x25 mm
Weight
1200 g





General systems parameters

Resolution of transmitted video image
1920 x 1080 px
Compression
Uncompressed
Metadata
Start/Stop, Filenames
Modulation type
OFDM 16QAM
Frequence range
5.1 – 5.9 Ghz
Distance range
up to 500 meters with omni antennas (LOS)



If you have any questions, please feel free to contact us
via e-mail info@wicam.pro
or by filling the contact form.
